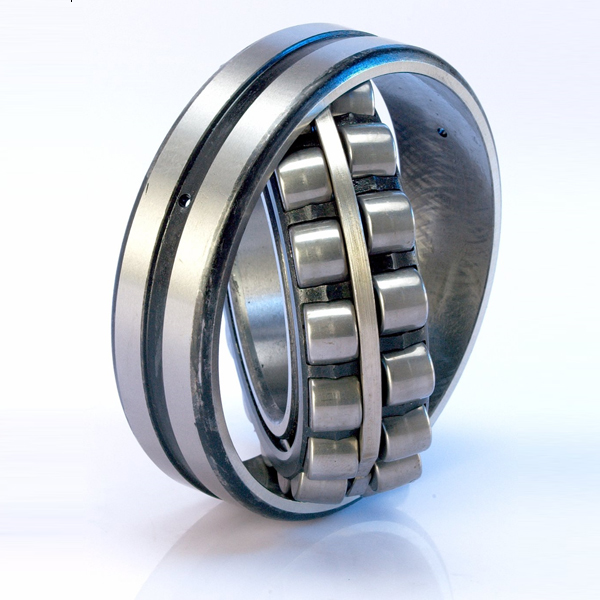

Spherical Roller Bearings

A spherical roller bearing is a rolling-element bearing that permits rotation with low friction, and permits angular misalignment. Typically these bearings support a rotating shaft in the [bore] of the inner ring that may be misaligned in respect to the outer ring. The misalignment is possible due to the spherical internal shape of the outer ring

Most spherical roller bearings are designed with two rows of rollers, allowing them to take very heavy radial loads and heavy axial loads. There are also designs with one row of rollers, suitable for lower radial loads and virtually no axial load. These are also called "barrel roller bearings" or "Tonnenlager" and are typically available in the 20200 and 20300 series.

Product Range
21304 – 21318, 22205 – 22296, 22308 – 22364, 23022 – 23096, 23122 – 23180, 23218 – 23280,
23944M – 23992M, 24024M – 24080M, 24122M – 24160M, 22205E2RS – 22220E2RS,
22205ETYPE – 22220ETYPE

Single Row Spherical Roller Bearings
20205 – 20220.
All Spherical Roller Bearings are with “W33”
  • (Also available in Brass Cage and 2RS series, E design – NSK type spherical roller bearings are also available)
  • Tapered Bore Bearings available in 1:12 ratio
  • Tapered Bore Bearings available 1:30 ratio in case of 240xx and 241xx series
